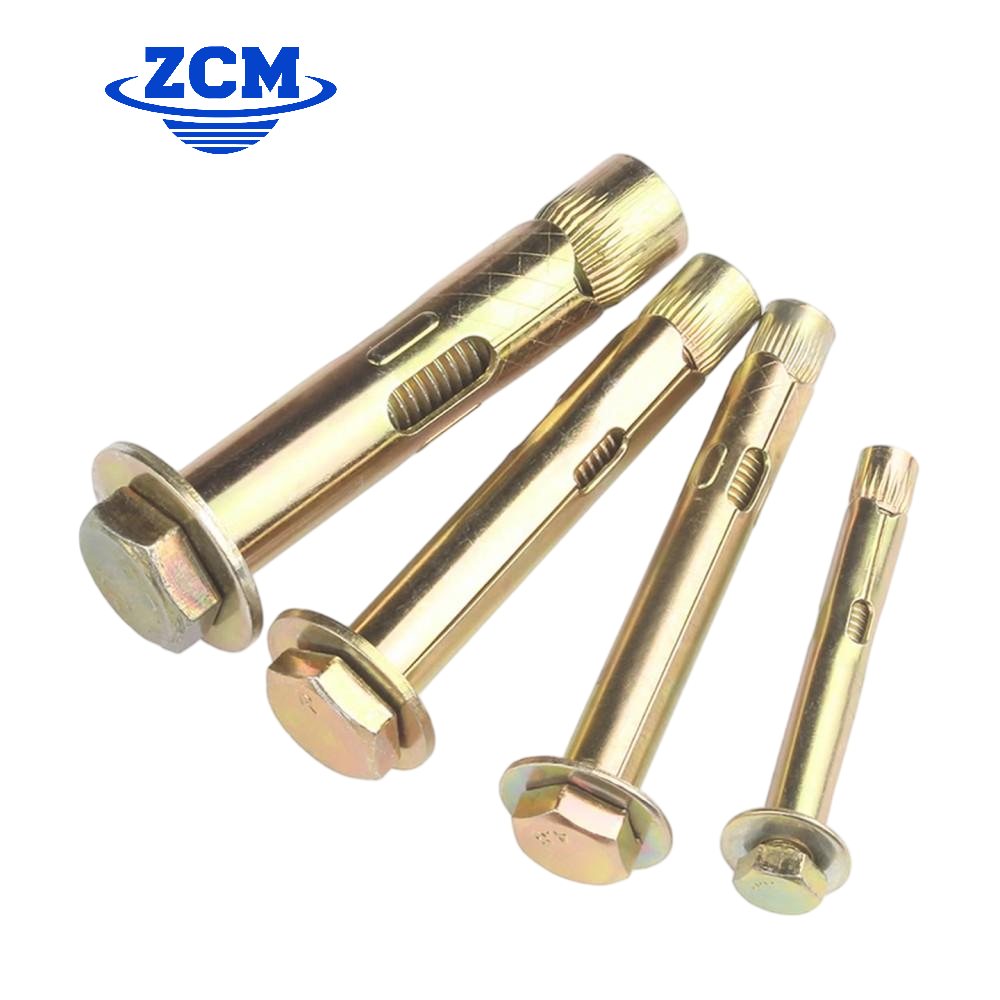

Hex Expansion Anchor Bolts
Hex Sleeve Anchors / Expansion Bolts

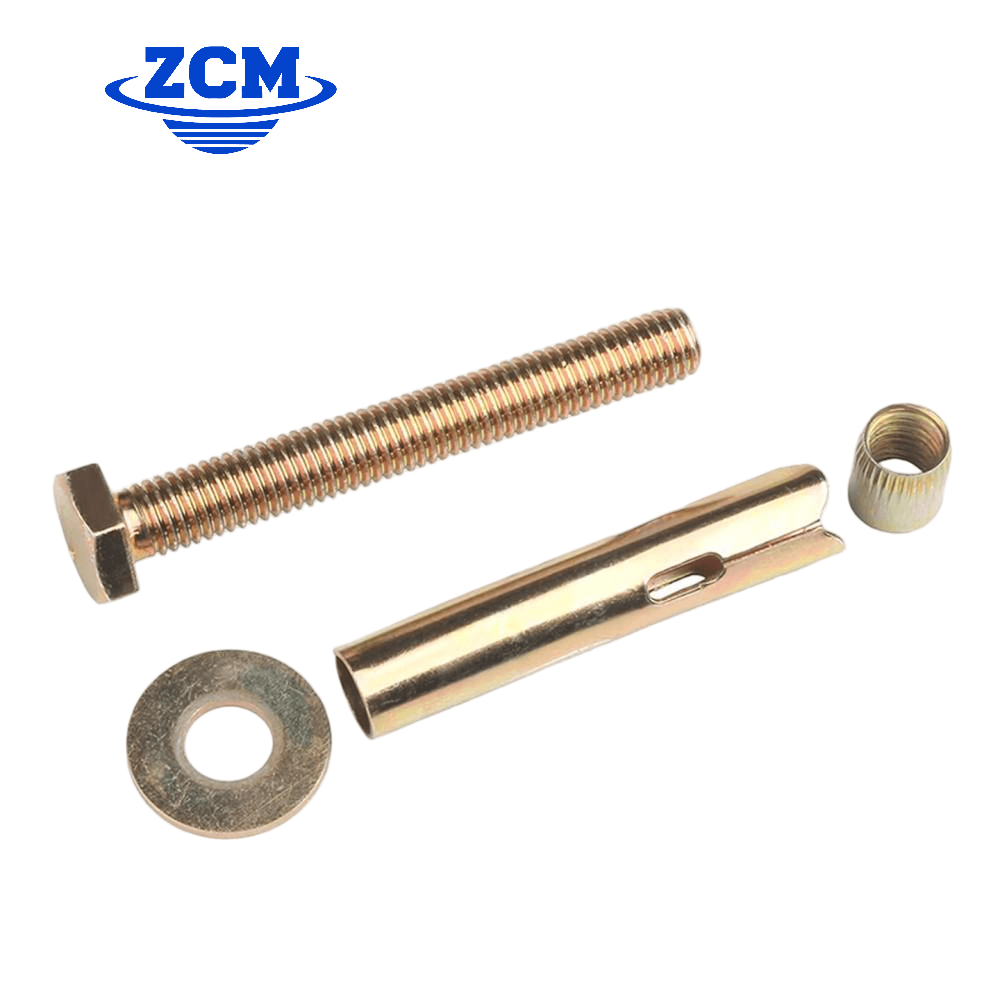

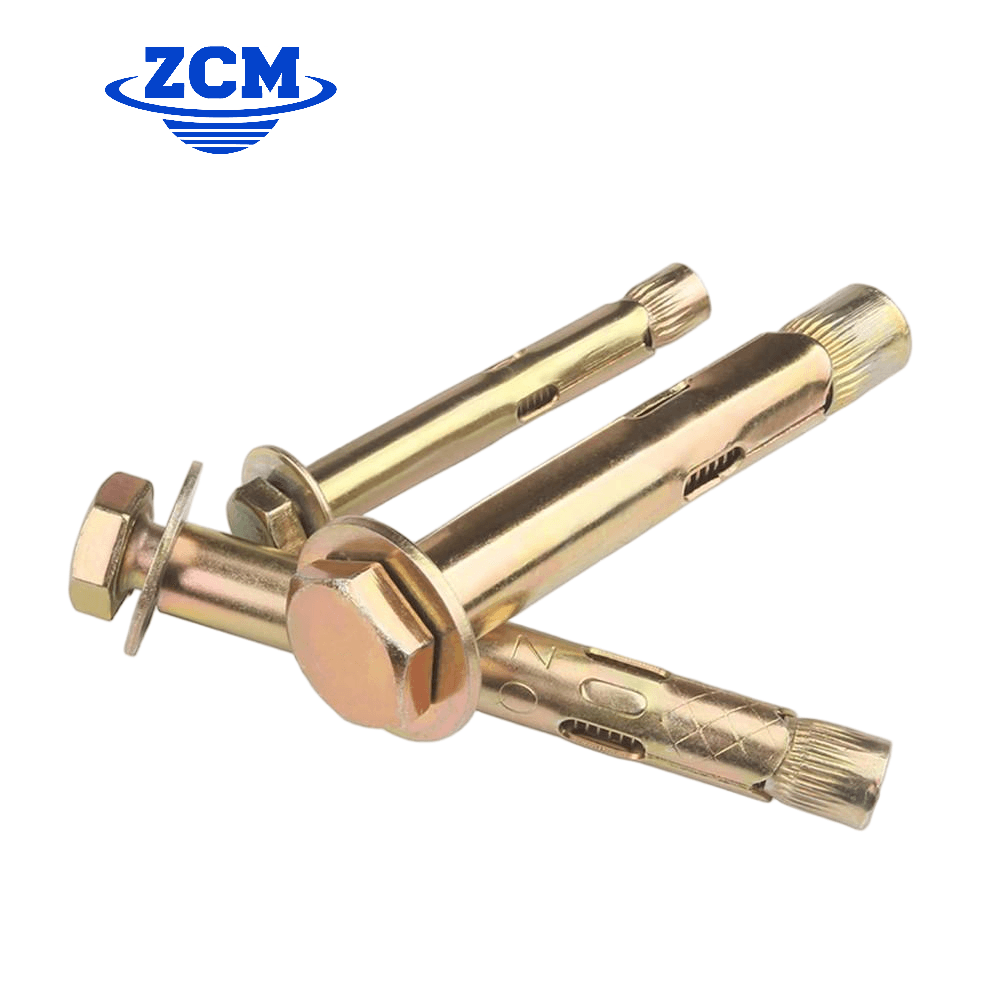

Our Hex Expansion Anchor Bolts are heavy-duty sleeve anchors designed for secure fastening into concrete, brick, stone, and masonry. The bolt assembly consists of four components: a hex flange head bolt, a 4-segment split expansion sleeve, a flat washer, and a cone nut. As the bolt is tightened, the cone is drawn into the sleeve causing it to expand and grip the inside of the drilled hole, creating a reliable mechanical anchor with excellent pull-out resistance.
Key Features
Technical Specifications
| Product Name | Hex Expansion Anchor Bolts (Sleeve Anchors) |
| Chinese Name | 六角膊胀螺栓 |
| Brand | ZCM / Zhongchun |
| Grade | 4.8 / 8.8 |
| Material | Carbon Steel (bolt + expansion sleeve), Stainless Steel |
| Bolt Diameter | M6, M8, M10, M12, M16, M20 |
| Total Length | 50mm - 200mm (varies by diameter) |
| Expansion Diameter | 8mm - 25mm |
| Head Type | Hex Flange Head |
| Expansion Type | 4-segment split sleeve with cone nut |
| Surface Treatment | Zinc-Yellow Chromate Plating, Zinc Plated, HDG, Dacromet |
| Standards | GB /T 22795, Non-standard / Custom |
| Components | Hex bolt, Expansion sleeve, Flat washer, Cone nut |
| Base Material | Concrete, Brick, Stone, Masonry |
| Packaging | Carton + Pallet, or per customer request |
| MOQ | Contact us for details |
| Lead Time | 15-20 days for standard orders |
Applications
Hex Expansion Anchor Bolts are essential for reliable structural anchoring into concrete and masonry across construction and industrial projects.
Interested in Hex Expansion Anchor Bolts?
Send us your specifications for a competitive quote. Standard orders delivered in 15-20 days.
