Screws

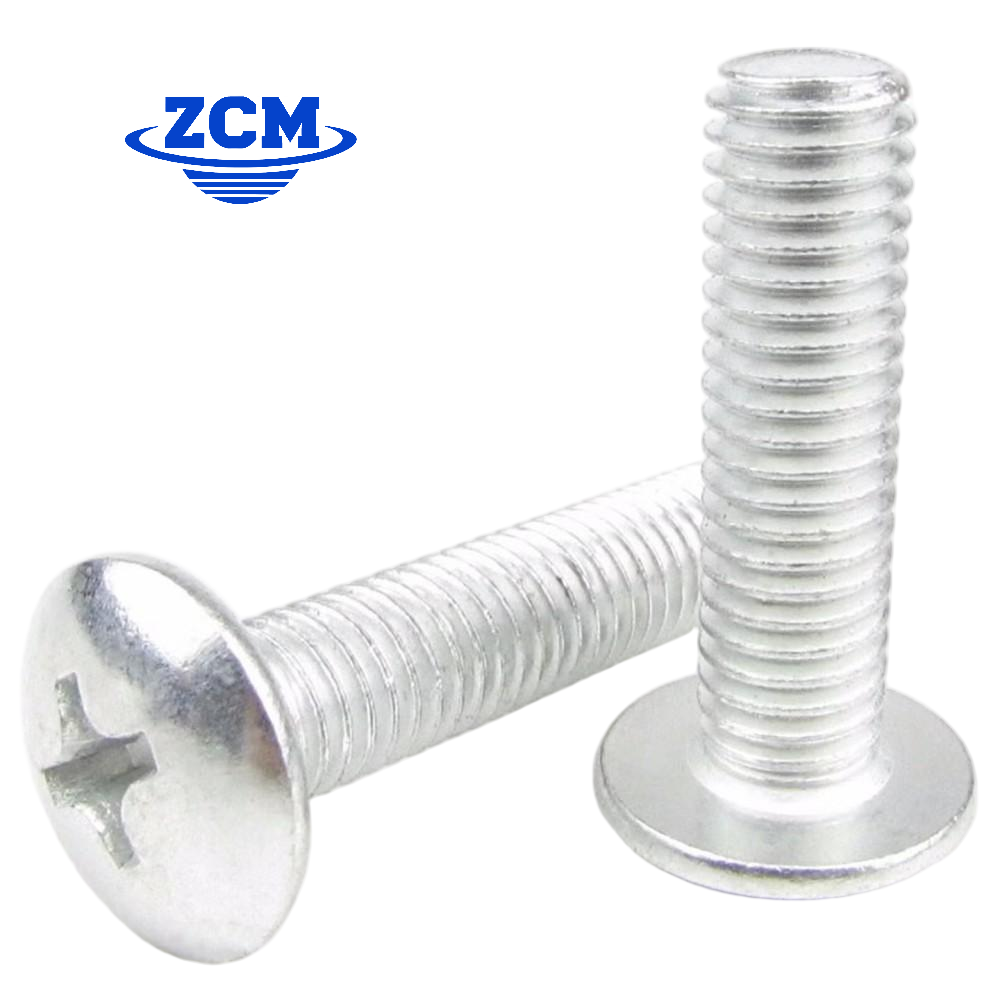

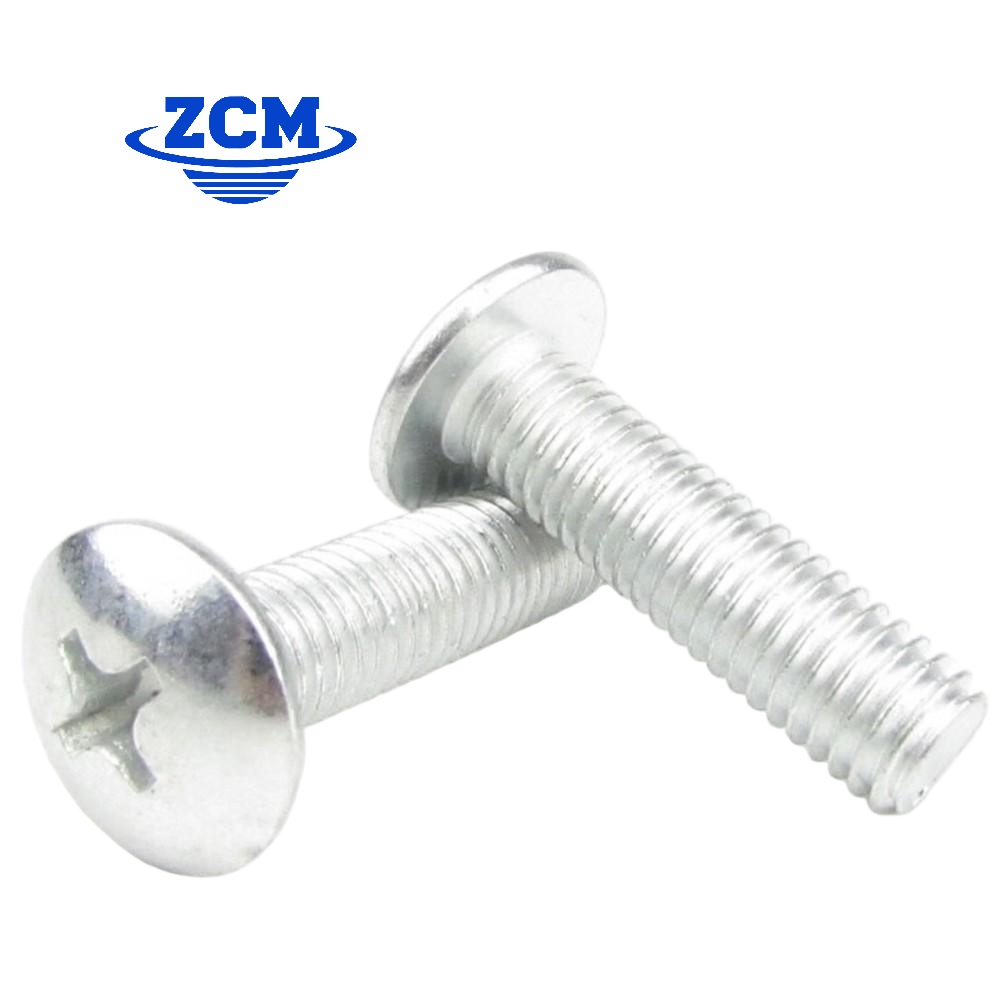

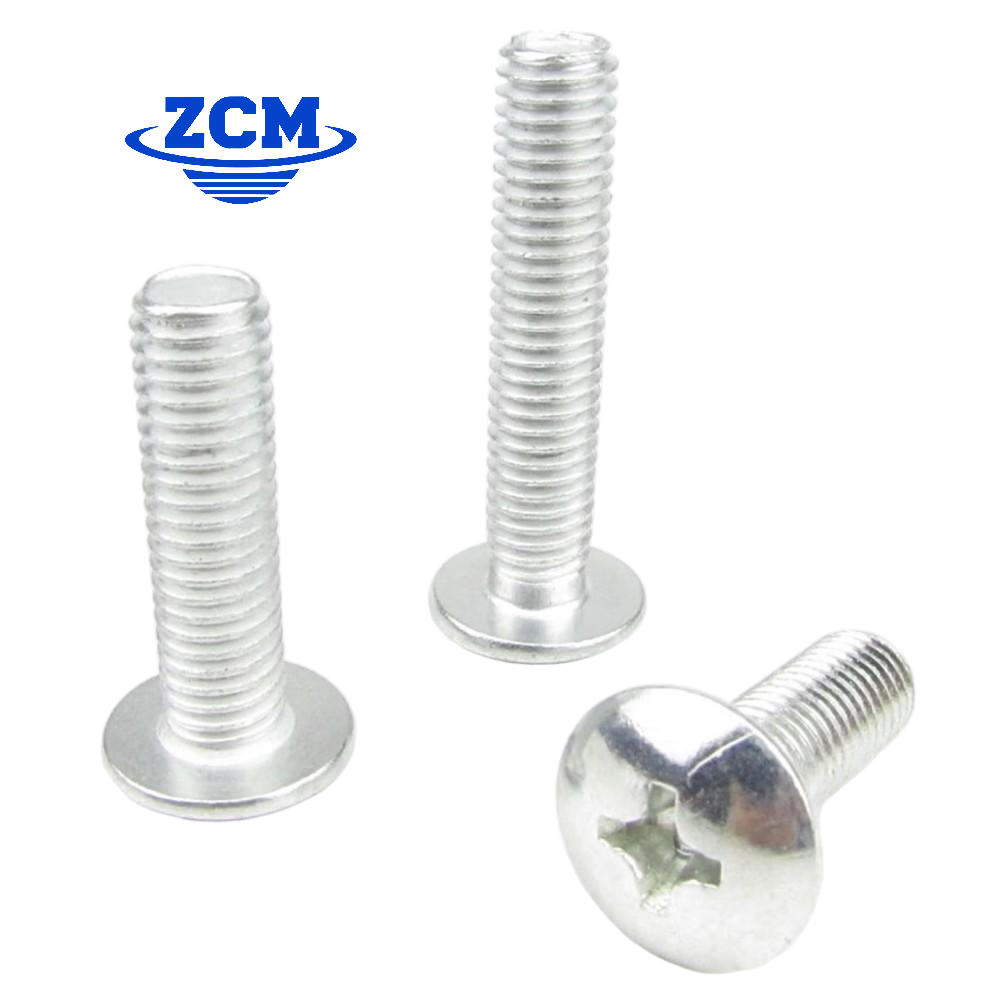

Large Flat Head Machine Screws
Oversized Truss Head / Phillips Cross Recess
Our large flat head machine screws feature an oversized truss-style head that provides a significantly wider bearing surface than standard pan head or round head screws. This design distributes clamping force over a larger area, making them ideal for fastening thin sheet materials, soft substrates, and applications where pull-through resistance is critical. Manufactured through precision cold heading with Phillips cross recess drive for reliable installation.
Key Features
Oversized flat head for maximum clamping surface
Phillips cross recess for easy power-driven installation
Precision cold-headed for consistent dimensions
Available in carbon steel and stainless steel
Multiple surface finishes: zinc, nickel, plain
Full thread for maximum grip length
Technical Specifications
| Product Name | Large Flat Head Machine Screws |
| Chinese Name | 大扁头机螺丝 |
| Brand | ZCM / Zhongchun |
| Grade | 4.8 / 8.8 |
| Material | Carbon Steel, Stainless Steel (304/316) |
| Size Range | M2 - M8 |
| Thread | Full Thread |
| Head Type | Large Flat Head (Oversized Truss Head) |
| Drive Type | Phillips Cross Recess (H-type) |
| Surface Treatment | Zinc Plated (White/Yellow/Blue), Nickel Plated, Plain |
| Standards | GB/T 5791, DIN 921, Custom |
| Packaging | Carton + Pallet, or per customer request |
| MOQ | Contact us for details |
| Lead Time | 15 days for standard orders |
Applications
Large flat head machine screws are widely used wherever a broad clamping surface and flush-mount fastening is required.
Electronics enclosure and PCB assembly
Sheet metal panel fastening
Electrical equipment and switchgear
Appliance and white goods manufacturing
Automotive interior trim components
Furniture hardware and fittings
Precision instrument assembly
LED lighting fixture mounting
